Missiles
Dexter provides magnetic solutions for some of the most effective and advanced missiles currently in use by the United States and its allies.

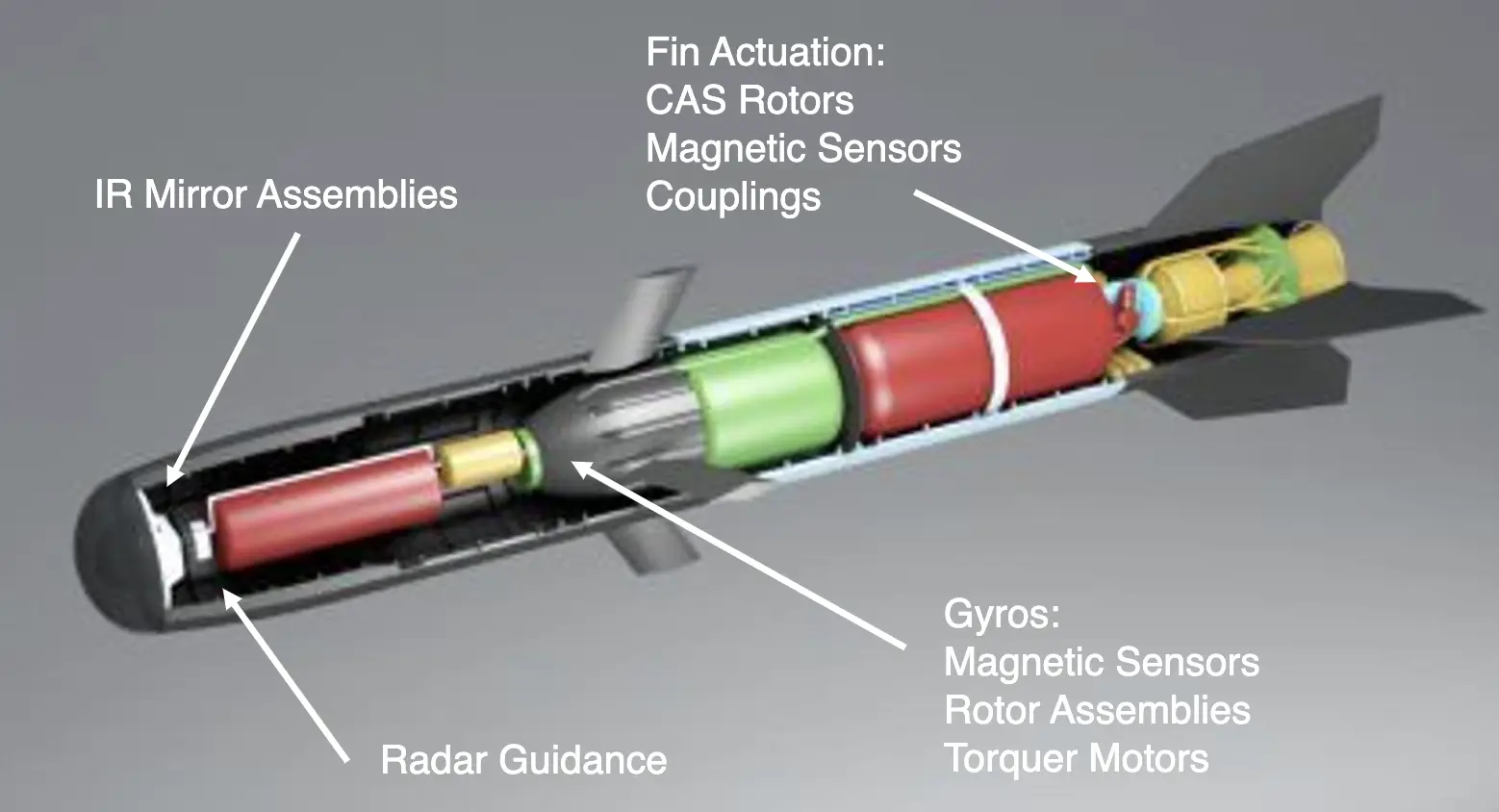

At Dexter, we provide high-performance magnets and critical magnetic assemblies for end application in:
• Mirror Assemblies
• Rader Guidance
• Gyroscopic Assemblies
• Fin actuation
![](https://www.dextermag.com/wp-content/themes/dexter-magnetics/scripts/timthumb.php?src=/wp-content/uploads/2022/01/litton-g1175a3461_1920.jpg&h=216&w=274&zc=1&q=100)
Inertial Navigation Systems
Inertial navigation systems (INS) use a combination of accelerometers and angular rate sensors (gyroscopes) to detect altitude, location, and motion. They may also be capable of detecting attitude, position, velocity, temperature, or magnetic fields.
![](https://www.dextermag.com/wp-content/themes/dexter-magnetics/scripts/timthumb.php?src=/wp-content/uploads/2022/01/litton-g70a61be11_1920.jpg&h=216&w=274&zc=1&q=100)
Accelerometers
An accelerometer is a device that measures the vibration, or acceleration of motion of a structure, using an electromechanical sensor that is designed to measure either static or dynamic acceleration.
![](https://www.dextermag.com/wp-content/themes/dexter-magnetics/scripts/timthumb.php?src=/wp-content/uploads/2022/01/Screen-Shot-2022-01-20-at-8.35.13-AM.png&h=216&w=274&zc=1&q=100)
Gyroscopes
The gyroscope is basically a massive rotor that is fixed in light supporting rings called gimbals. The gimbals have frictionless bearings that isolate the central rotor from outside torques.
![](https://www.dextermag.com/wp-content/themes/dexter-magnetics/scripts/timthumb.php?src=/wp-content/uploads/2022/01/f-35a-lightning-ii-g50d629092_1920.jpg&h=216&w=274&zc=1&q=100)
Missile Fin Actuation
• At least one set of aerodynamic surfaces of canards: wings or tail fins
• At least one set of aerodynamic surfaces is designed to rotate and allow the missile
to maneuver
• Control and actuation usually require limited stroke motion achieved with servo
motors; actuators or stepper motors
• Require fin lock to maintain position - torque force requirements
• Motion transfer mechanism
• Control - feedback loop; control electronics
![](https://www.dextermag.com/wp-content/themes/dexter-magnetics/scripts/timthumb.php?src=/wp-content/uploads/2022/08/infrared-lamp-2808935_1920.jpg&h=216&w=274&zc=1&q=100)
Infrared Guided Technology
• Military technology utilizing infrared tracking and measurement to control and guide missiles to target.
• Passive weapon guidance system with no target awareness - good for sneak attack
• System consists of an infrared seeker, computer and actuator
• Physical specifications are generally very tight and hard to meet. Tolerance, finish and workmanship are essential.
